Diorama Room box pieces

The roombox comes with 6 pieces

• A - the left wall

• B - the right wall

• C - the floor

• 1 top bracket, the top does have a proper orientation, the right side is spaced slightly different than the left

• 2 side brackets, the floor sides of the brackets have more holes than the wall side of the brackets.

Assembly Instructions:

This room box was designed to be assembled without tools or adhesives by one person, then later unassembled and stored flat when not in use.

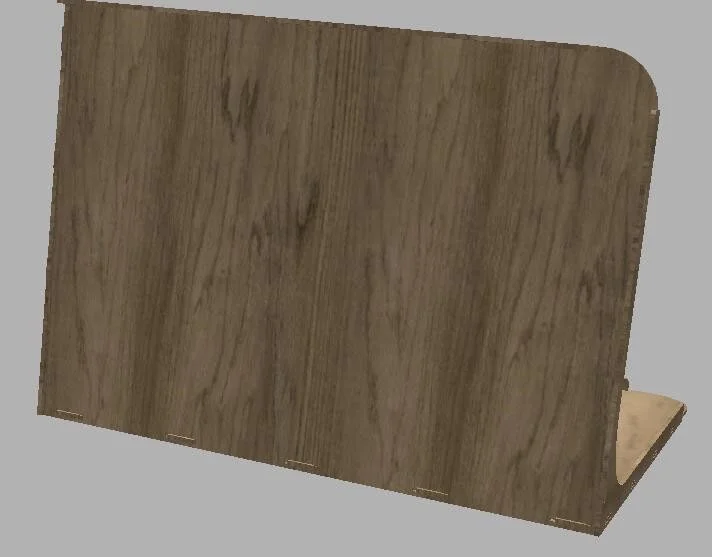

 1. Line up the holes on the bottom of panel "B" with the stablizing pegs on the side of the panel "C". Gently press each peg into the opening, when all the pegs have been pressed in push the panel into the opening of the peg to hold the side panel in place. When the panel has been pushed in place the edges of the panel should line up.

 2. Line up the holes on the side of panel "A" with the pegs on the side of panel "B" and the holes on the bottom of panel "A" with the pegs on the Bottom panel "C". Gently press in each peg.

 3. Line up the holes in the top bracket with the pegs on the top of Panel "A" & "B". Gently press in each peg.

 4. Line the holes of the side bracket with the pegs on the side of a panel and the pegs on the bottom panel "C". Gently press in each peg. Repeat for other side.

Storage:

Store flat in a dry place with stable humidity.

If you intend to unassemble often a bit of beeswax or wood paste wax on the pegs will protect the pegs from damage and help with smooth re-assembly.

Customizing:

Tape the plugs and holes before applying any paint or finish, they can prevent the pieces from fitting together.

 Make careful consideration to how you apply fixtures and accessories to the walls as it make prevent you from being able to store flat later. Poster putty, blue tac and other such things can be used to adhere items on the wall temporarily.

Additional instructions

A video tutorial will be added shortly for those that need it!.
